High flow filter cartridges are engineered to meet the growing demand for efficient, large-volume filtration across modern industries. As industrial systems scale up, traditional filter cartridges often struggle to handle high flow rates without pressure loss or frequent replacement. This is where high-capacity filtration solutions play a critical role. Designed with advanced pleated media and optimized flow paths, these cartridges allow facilities to process more liquid with fewer components, saving time, energy, and cost.
What Are High Flow Filter Cartridges?

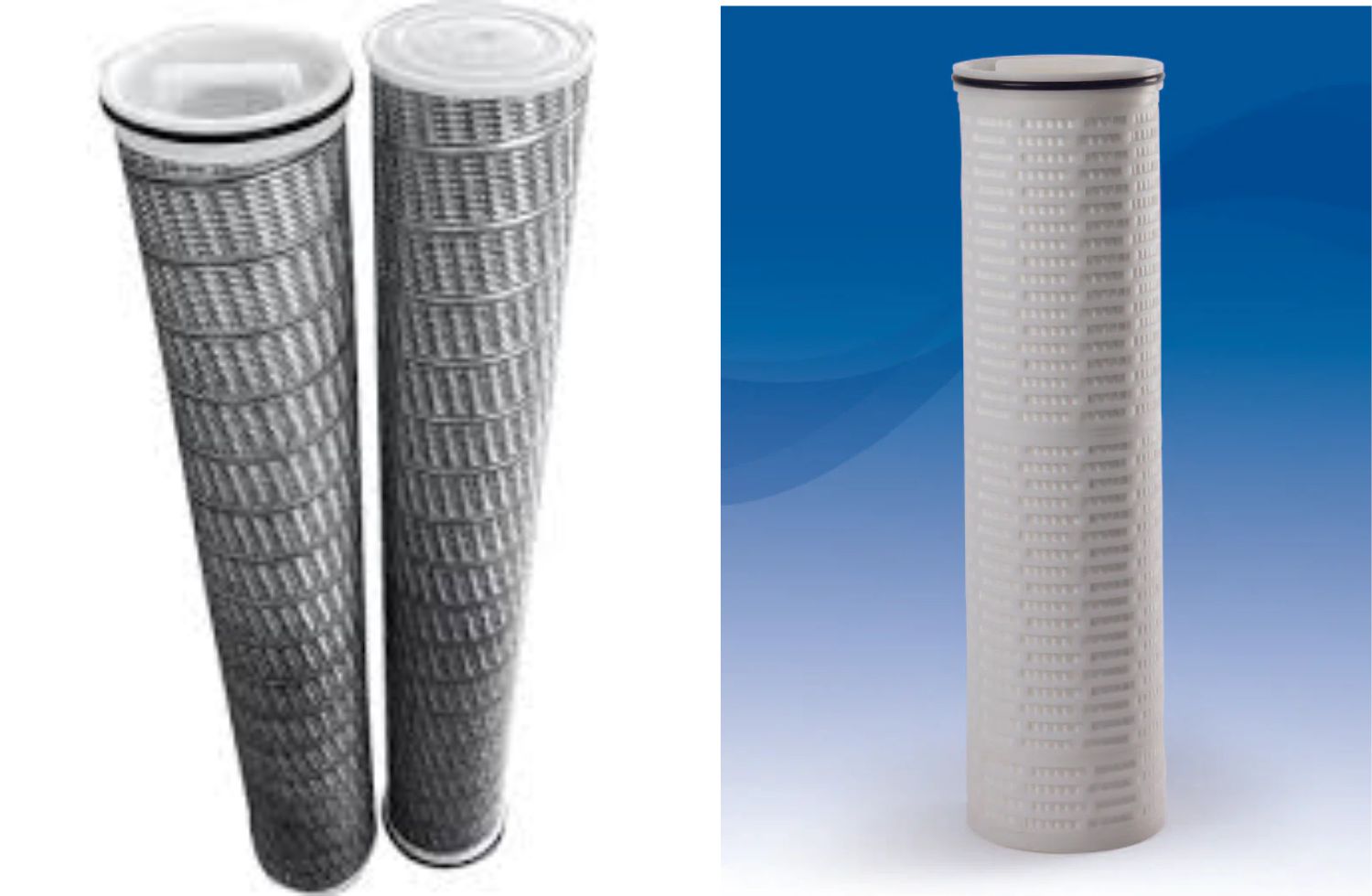

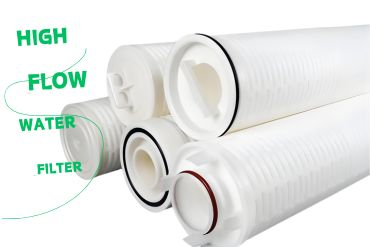

High flow filter cartridges are industrial filtration elements designed to handle significantly higher flow rates than conventional cartridges. Typically featuring a large diameter and pleated filter media, they allow fluid to flow from the outside toward the center core. This design maximizes surface area and evenly distributes contaminants across the media. Unlike standard cartridges that require multiple units in parallel, a single high-flow cartridge can often replace several traditional filters. This makes them ideal for applications where space, efficiency, and maintenance reduction are critical factors.
How High Flow Filter Cartridges Work
The operating principle of high flow filter cartridges is based on enhanced fluid dynamics and depth filtration. Liquid enters from the outer shell and passes through multiple layers of filtration media before exiting through the central core. As contaminants are trapped throughout the depth of the media, clogging is reduced and flow remains stable for longer periods. This outside-in configuration also protects downstream equipment by ensuring consistent contaminant removal even at elevated flow rates.
Key Materials Used in High Flow Filtration
Most high flow filter cartridges are manufactured using durable synthetic materials such as polypropylene, polyester, or blended fibers. These materials are chemically resistant, thermally stable, and suitable for a wide range of industrial fluids. The absence of adhesives—thanks to thermal bonding—reduces contamination risks and improves cartridge integrity. Reinforced cores and end caps ensure structural strength under high pressure and continuous operation.
Major Advantages of High Flow Filter Cartridges
One of the strongest benefits of high flow filter cartridges is operational efficiency. By replacing multiple smaller cartridges with fewer high-capacity units, facilities reduce housing size, labor costs, and maintenance frequency. Lower pressure drop improves pump efficiency, while extended service life minimizes downtime. These advantages translate directly into lower operating costs and improved system reliability over time.
Flow Rate and Pressure Drop Performance
High flow filter cartridges typically support flow rates ranging from 50 to 500 gallons per minute (GPM) per cartridge. Despite this high throughput, pressure drop remains low due to the pleated media design and large surface area. Maintaining optimal pressure levels is critical for protecting pumps, valves, and downstream membranes, especially in high-demand systems.
Micron Ratings and Filtration Accuracy
Available in micron ratings from 1 to 100 microns, high flow filter cartridges offer flexible filtration solutions. Lower micron ratings capture fine particulates, while higher ratings are ideal for coarse sediment removal. Both nominal and absolute filtration options are available, allowing precise matching to application requirements. Selecting the correct micron rating ensures efficiency without unnecessary flow restriction.
High Flow Filter Cartridges in Water Treatment
Municipal and industrial water treatment facilities rely on high flow filter cartridges to remove suspended solids, rust, and sediment. These cartridges are commonly used as pre-filters to protect sensitive downstream systems such as reverse osmosis membranes. Their high capacity allows treatment plants to process large volumes of water while maintaining consistent quality and reducing maintenance cycles.
Applications in Food and Beverage Processing
In food and beverage production, cleanliness and compliance are essential. High flow filter cartridges are widely used to filter water, syrups, oils, and beverages without affecting taste or quality. Food-grade materials ensure compliance with regulatory standards while high throughput supports continuous production lines. This combination improves efficiency and product consistency.
Pharmaceutical and Biotechnology Uses
Pharmaceutical manufacturing demands precise and reliable filtration. High flow filter cartridges are used in pre-filtration stages to remove particulates before sterile filtration. This reduces load on final filters and helps maintain GMP compliance. Fewer cartridge changes also lower the risk of contamination and improve process stability.
Oil, Gas, and Petrochemical Applications
The oil and gas industry uses high flow filter cartridges to filter fuels, lubricants, and process fluids under harsh conditions. These cartridges are designed to withstand high temperatures, chemical exposure, and continuous flow. Their durability and high dirt-holding capacity make them essential for refineries and petrochemical facilities.
Power Generation and Utility Systems
Power plants depend on clean fluids to protect turbines and cooling systems. High flow filter cartridges remove debris and particulates from cooling water, condensate, and boiler feed water. Their reliability supports uninterrupted operations and reduces wear on critical equipment.
Housing Design and System Compatibility
Because of their size and flow capacity, High-capacity filtration cartridges require dedicated housings. These housings are typically made from stainless steel or reinforced polymers and are designed for easy cartridge replacement. Proper compatibility between housing and cartridge is essential for safe operation and optimal performance.
Installation and Maintenance Best Practices
Installing High-capacity filtration cartridges is straightforward, but proper sealing and alignment are critical. Routine monitoring of differential pressure helps determine replacement intervals. Compared to traditional filters, maintenance is less frequent, saving labor and reducing downtime.
Cost Efficiency and Return on Investment
Although the initial cost of High-capacity filtration cartridges may be higher, the long-term savings are substantial. Reduced energy consumption, fewer replacements, and lower labor requirements contribute to a lower total cost of ownership. Many facilities experience a rapid return on investment after switching to high-flow systems.
Environmental Benefits and Sustainability
By using fewer cartridges and extending service life, High-capacity filtration cartridges significantly reduce waste. Lower energy consumption also decreases environmental impact. These benefits make them an environmentally responsible choice for modern filtration systems.
How to Choose the Right High Flow Filter Cartridge
Selecting the right cartridge involves evaluating flow rate, micron rating, temperature, chemical compatibility, and contaminant type. Consulting filtration specialists ensures the high flow filter cartridges you choose match system requirements and regulatory standards.
Common Myths About High Flow Filtration
A common misconception is that higher flow means lower filtration quality. In reality, High-capacity filtration cartridges are engineered to maintain excellent efficiency even at elevated flow rates. Another myth is higher cost, but operational savings often outweigh initial investment.
Latest Innovations in High Flow Filtration
Advances in pleating technology and polymer science continue to improve High-capacity filtration cartridges. Modern designs offer higher dirt-holding capacity, improved chemical resistance, and longer service life, expanding their use across industries.
Conclusion
High flow filter cartridges have transformed industrial filtration by delivering high efficiency, lower pressure drop, and long-term cost savings. Their ability to handle large volumes while maintaining filtration quality makes them essential across water treatment, food processing, pharmaceuticals, energy, and heavy industry. With proper selection and maintenance, these cartridges provide reliable performance, environmental benefits, and strong operational value for years to come.
Frequently Asked Questions (FAQs)
1. What are high flow filter cartridges used for?
They filter large volumes of liquid in industrial and commercial systems.
2. Are high flow cartridges better than standard filters?
Yes, for high-demand applications requiring efficiency and low pressure drop.
3. How long do high flow filter cartridges last?
Service life depends on usage but is generally longer than standard cartridges.
4. What micron ratings are available?
Typically from 1 to 100 microns.
5. Are high flow cartridges environmentally friendly?
Yes, they reduce waste and energy consumption.
6. Can one cartridge replace multiple standard filters?
Yes, in many systems a single cartridge replaces several conventional units.
